TWO LAYERED
DIMPLED SHEET

CE-certified HDPE dimpled sheet made of 100% recycled material.

For wall protection, as an alternative for blinding layers, for covering firewood, as border for flower-beds and vegetable batches, or protection for gabions.


Type Load capacity at medium defor­mation
Basic Plus up to 310 kN / m2 approx. 117 kN / m2

Premium

up to 400 kN / m2 approx. 219 kN / m2
Premium Plus up to 450 kN / m2 approx. 260 kN / m2
dampfbremsfolien

NOD

DIMPLED SHEET
WITH GEOTEXTILE

Vertical and horizontal drainage

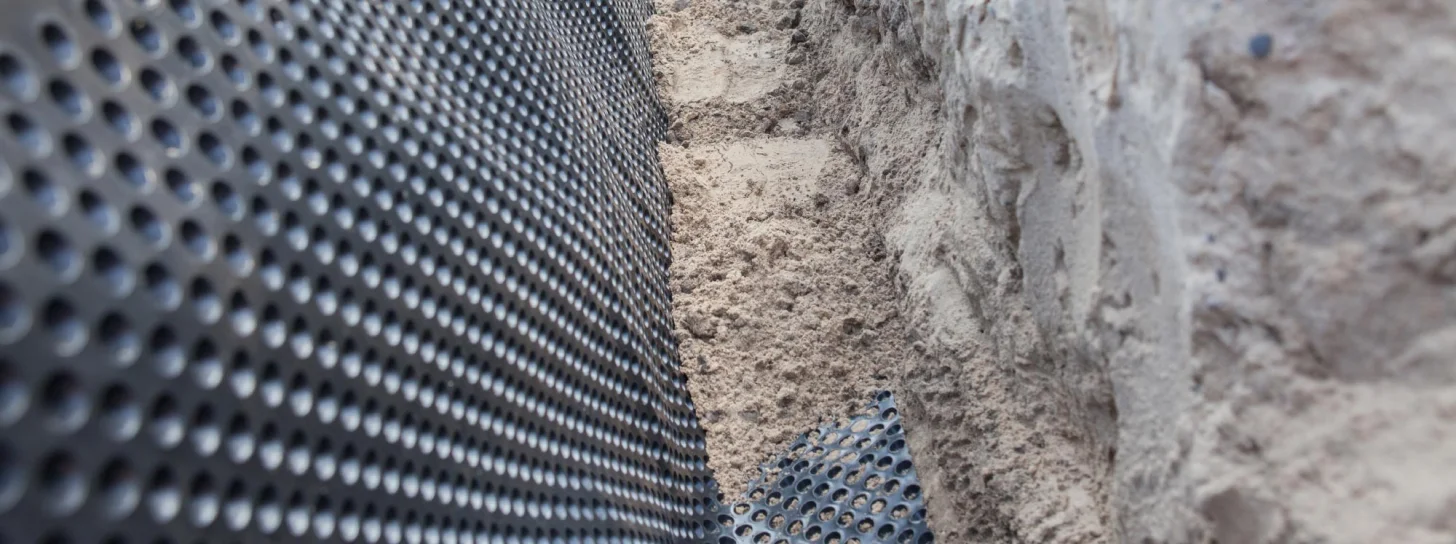

The dimpled sheet with laminated geotextile protects the waterproofing layer of foundation walls from damage and reliably drains seepage water.
Can also be used as drainage mat, eg. for green roofs.

Installed correctly, the dimpled sheet protects insulation and waterproofing coating of the foundation wall from damage when the excavation pit is re-filled and compacted. The geotextile prevents clogging of the spaces between the dimples, thus ensuring the drainage of seepage and groundwater in accordance with the required DIN standards.

Installed horizontally, our NOD also supports drainage of green roofs and patios.


Dimpled Sheet with Geo­textile
Beschreibung Daten
Material Dimpled Sheet / Geotextile HDPE / PP
Weight Dimpled Sheet / Textile 500 g/m2 / 110 g/m2
Dimple height / Number of dimples 8 mm / approx. 1860 per m2
Drainage Capacity

> 2,1 l/(ms) / approx. 118 l/min/m

Compressive strength 250 kN/m2 (25 t/m2)

NVG

DIMPLED SHEET WITH GEOTEXTILE AND SLIDING FILM

Vertical and horizontal drainage
Additional detachable sliding film

The dimpled sheet with laminated geotextile and sliding film protects the waterproofing layer of foundation walls from damage and reliably drains seepage water.

Can also be used as drainage mat, eg. for green roofs.

dampfbremsfolien

Installed correctly, the dimpled sheet protects insulation and waterproofing coating of the foundation wall from damage when the excavation pit is re-filled and compacted. The additional sliding film adheres to the waterproofing agent, enabling the dimpled sheet to detach when tensile and shear forces are applied during filling and settling of the excavation pit. The waterproofing is protected from damage and the penetration of moisture into the foundation walls prevented. The geotextile prevents clogging of the spaces between the dimples, thus ensuring the drainage of seepage and groundwater in accordance with the required DIN standards.

Installed horizontally, our NVG also supports drainage of green roofs and patios. Here too, the additional sliding layer protects waterproofing membranes.


Dimpled Sheet with Geotextile and Sliding Film
Beschreibung Daten
Material Dimpled Sheet / Geotextile / Film HDPE / PP / LDPE
Weight Dimpled Sheet / Textile / Film 500 g/m2 / 110 g/m2 / 100 g/m2
Dimple height / Number of dimples 8 mm / approx. 1860 pro m2
Drainage Capacity > 2,1 l/(ms)
Compressive strength

250 kN/m2 (25 t/m2)

XxX-TRA

HIGH TENSILE STRENGTH:
420 kn/m2

10mm dimple height
More stability and higher drainage capacity

Dimped Sheet XxX-tra is available with geotextile as well as with geotextile and sliding film. It is used for foundation wall protection and area drainage, whenever higher tensile strength and drainage capacity are required.

The applications of these dimpled sheets correspond to those of NOD and NVG. The adapted dimple shape and placement, in addition to the higher number of dimples, increase load baring capacity as well as drainage capacity.

In addition to foundation wall protection, this product is often used for walkable green areas and patio coverings.


Dimpled Sheet XxX-TRA
Beschreibung Daten
Material Dimpled Sheet / Geotextile / Film HDPE / PP / LDPE
Weight Dimpled Sheet / Textile / Film

600 g/m2 / 136 g/m2 / 100 g/m2

Dimple height / Number of dimples

10 mm / approx. 3368 per m2

Drainage Capacity

> 3,5 l/(ms)

Compressive strength

420 kN/m2 (42 t/m2)

NID

EXTREMELY HIGH DRAINAGE CAPACITY

For tunnel construction
For area drainage
For water storage

Due to the 20 mm high dimples, this sheet has a very high water drainage capacity. It is therefore particularly suitable for use in tunnel construction, but also as a horizontal drainage layer where large quantities of water occur.

NID is also available with geotextiles in various laminations. Among other things, these versions can be used as a water retainment system and drainage for green roofs.


Dimpled Sheet NID
Beschreibung Daten
Material Dimpled Sheet / Geotextile HDPE / PP
Weight Dimpled Sheet

800 g/m2 / 1.000 g/m2

Dimple height / Number of dimples

20 mm / approx. 400 pro m2

Drainage Capacity NID

approx. 10 l/(ms)

Drainage Capacity with textile

approx. 7,5 l/(ms)

Compressive strength

160 kN/m2 or 250 kN/m2
